Design Characteristic

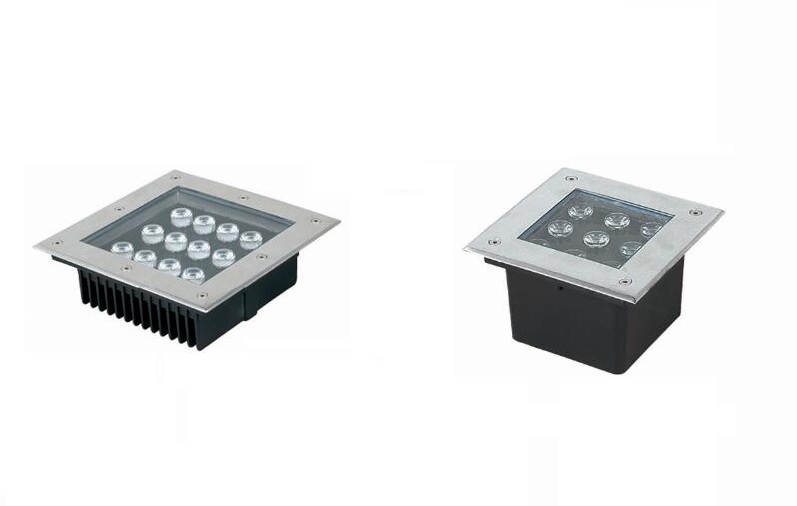

This led ground lamp is designing base on ground assist illumination.The lamp is made by die-casting aluminum with stainless steel panel and tempered glass,good weight capacity. Waterproof structure,dampproof and dustproof.The lamp with embedded part are easy for installation and maintenance
Features：
Wide working voltage range: DC12V-DC24V, Save 40% power with more efficient. DC to DC power management design
Scope:

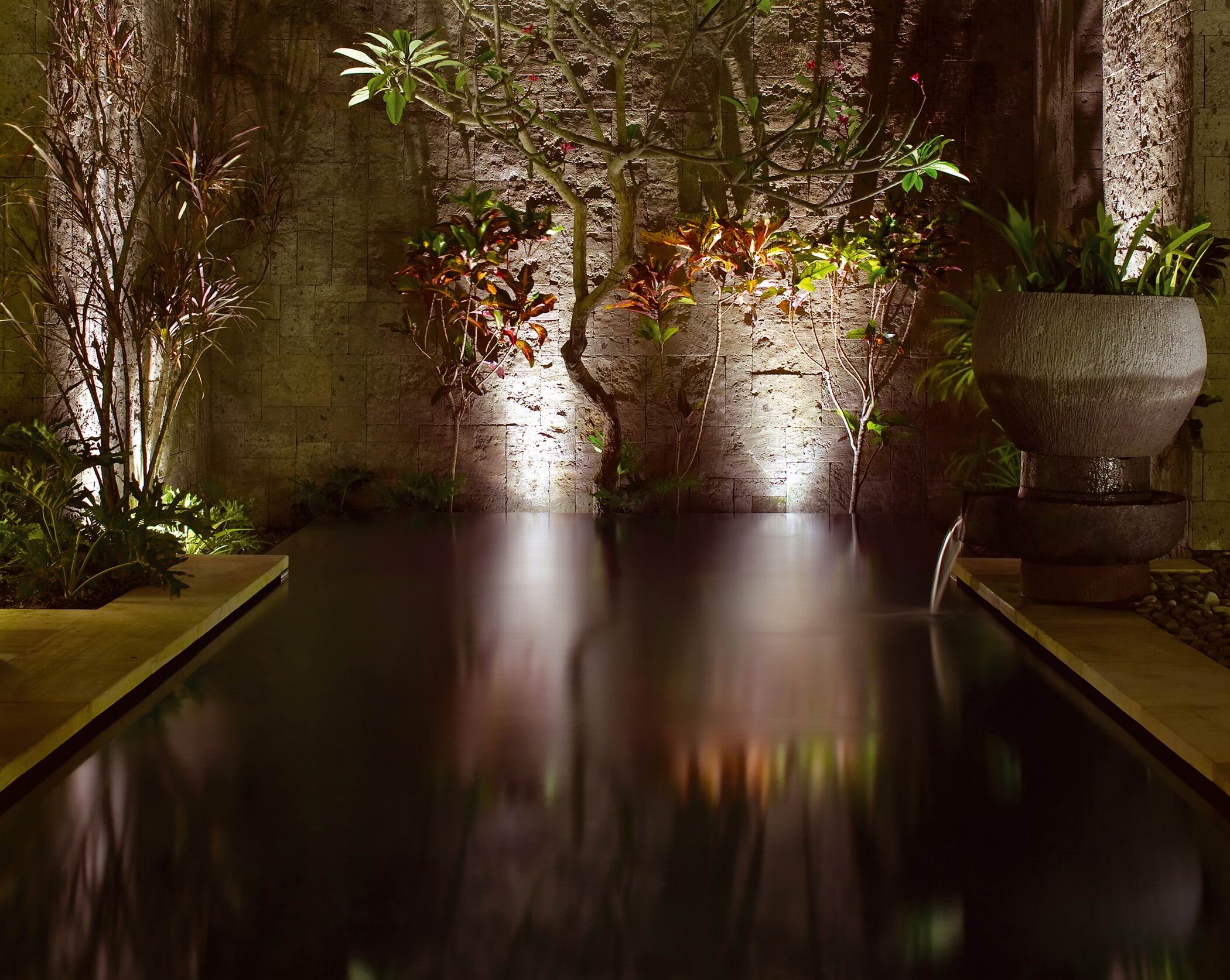

Shopping plaza,exhibition center, parking lot, stadium, tennis playground, gymnasia, billboard, statue, lighting engineering project,etc.
Specifications
| Model | FTFX-MDD-028 | FTFX-MDD-029 | FTFX-MDD-030 |
| Material |
Stainless steel cover, toughened glass |
||

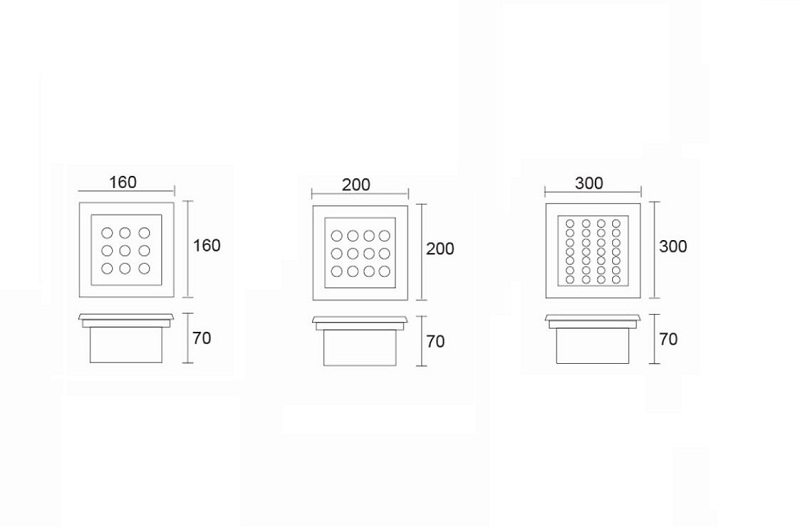

| Size(mm) | L160*W160*H70mm | L200*W200*H70mm | L300*W300*H70mm |
| Voltage(V) | DC24V/AC220V | ||
| Power(W) | 9W | 12W | 24W |
| Color Temperature(K) | 2000/3000/6000/RGB | ||
| LED Type LED | Philip/Osram/Epistar/Cree | ||
| Beam Angle | 30°/45°/60° optional | ||
| Working Temperature(℃) | -25℃+45℃ | ||
| Lamp Life(H) | >20000H | ||
| Lamp Efficiency | >90% | ||
| IP Rating | IP67 | ||
| Control Mode | Single color constantly on/DMX512 | ||
| Profile name | Release date | - |
|---|
